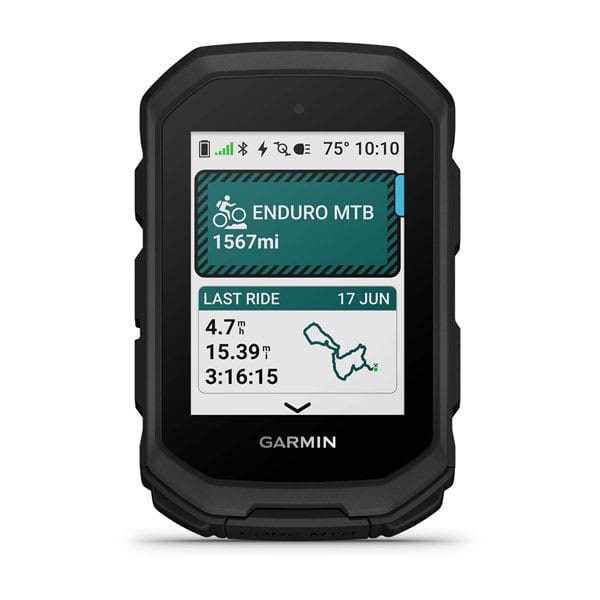

Edge MTB

Description

The Bike Computer Made for Mountain Bikers

Edge MTB is made tough with a rugged, compact design that’s ready for long days on the trails. And new enduro and downhill ride profiles with 5 Hz GPS recording during descents mean you can see greater detail about the lines you take.

• Rugged Design with Scratch-Resistant Corning® Gorilla® Glass
• Up to 14 Hours of Battery Life in Demanding Use Cases
• Enduro and Downhill Ride Profiles
• 5 Hz GPS Recording While Descending in Enduro or Downhill Ride Profiles
• Preloaded with Trailforks Maps and Forksight Mode
• Automatically Track Split Times While Riding

What You’ll Love

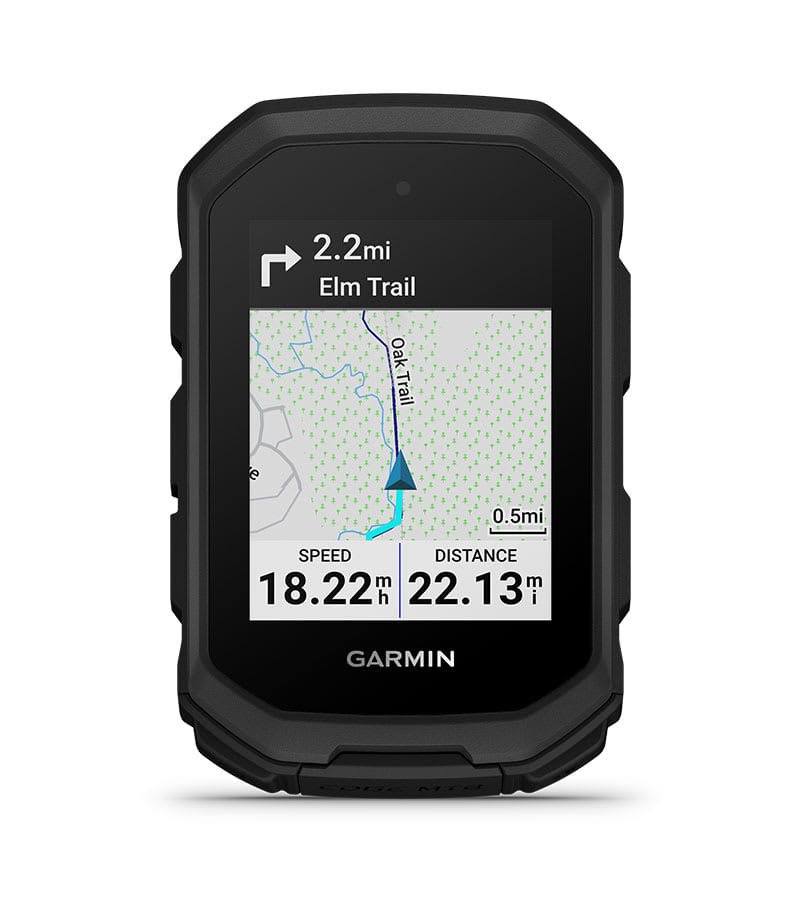

Built to Shred

Featuring a compact, rugged 7-button design with scratch-resistant Corning Gorilla Glass, the Edge MTB bike computer can stand up to the most extreme rides.

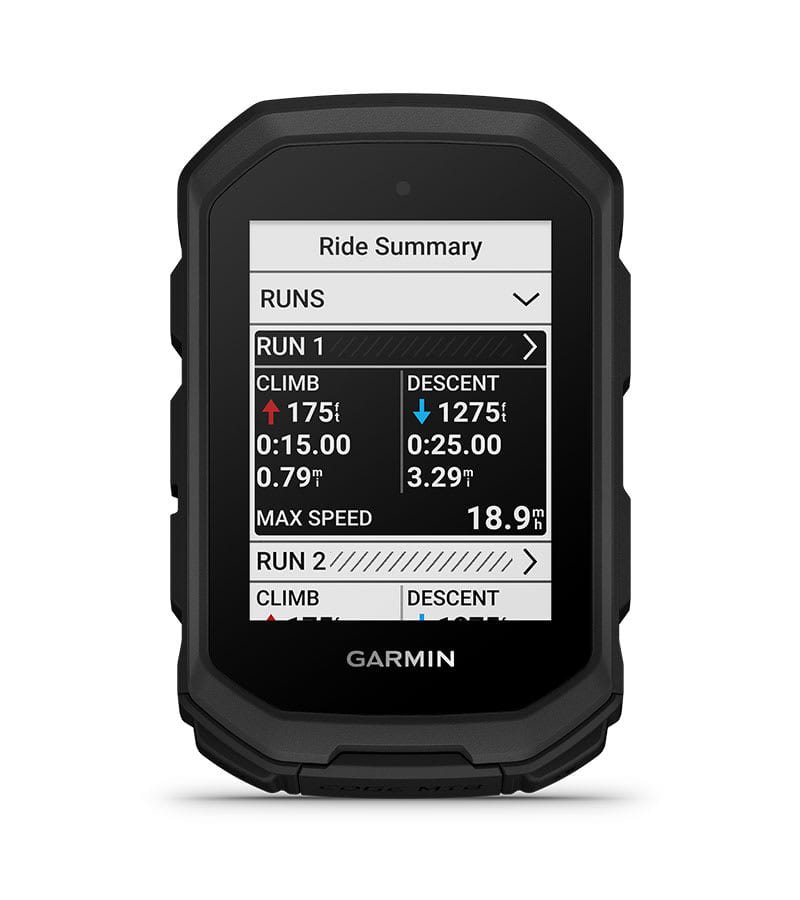

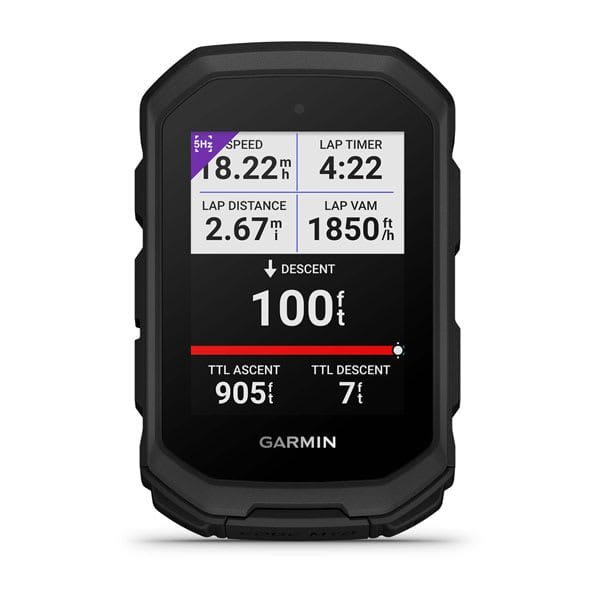

Enduro and Downhill Ride Profiles

The enduro ride profile tracks total ascent and descent from each run and for the ride overall. The downhill profile laps each time you finish a descent, so your return to the top via shuttle or ski lift doesn’t affect your ride stats.

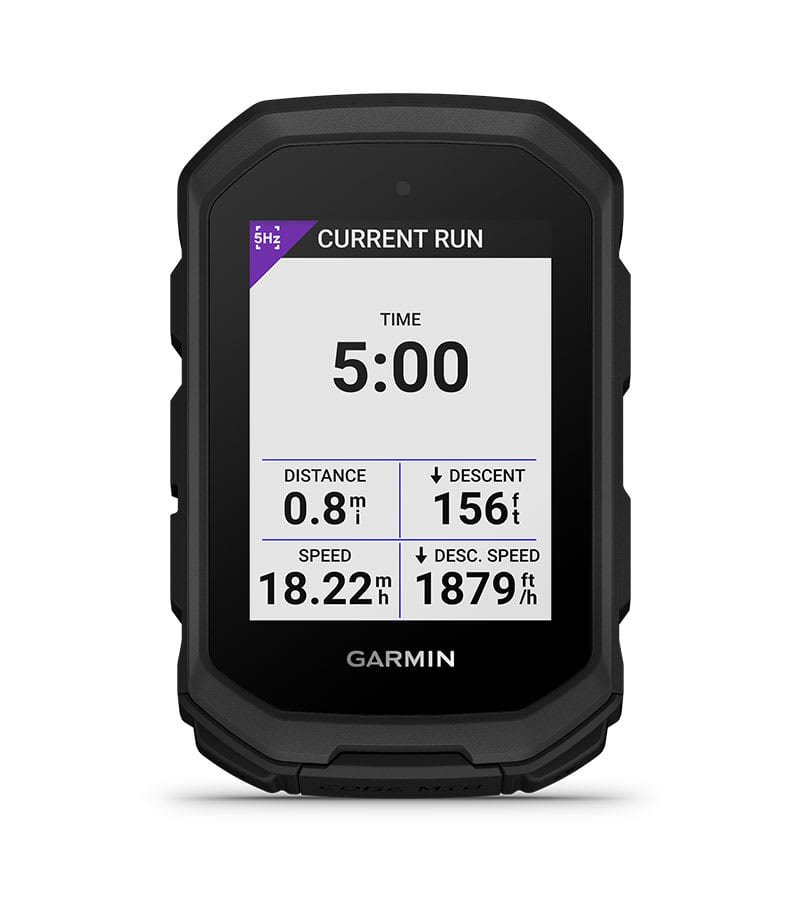

5 Hz GPS Recording

See greater detail about the lines you take down the trail with multi-band GPS with 5 Hz GPS recording while using the enduro or downhill ride profiles.

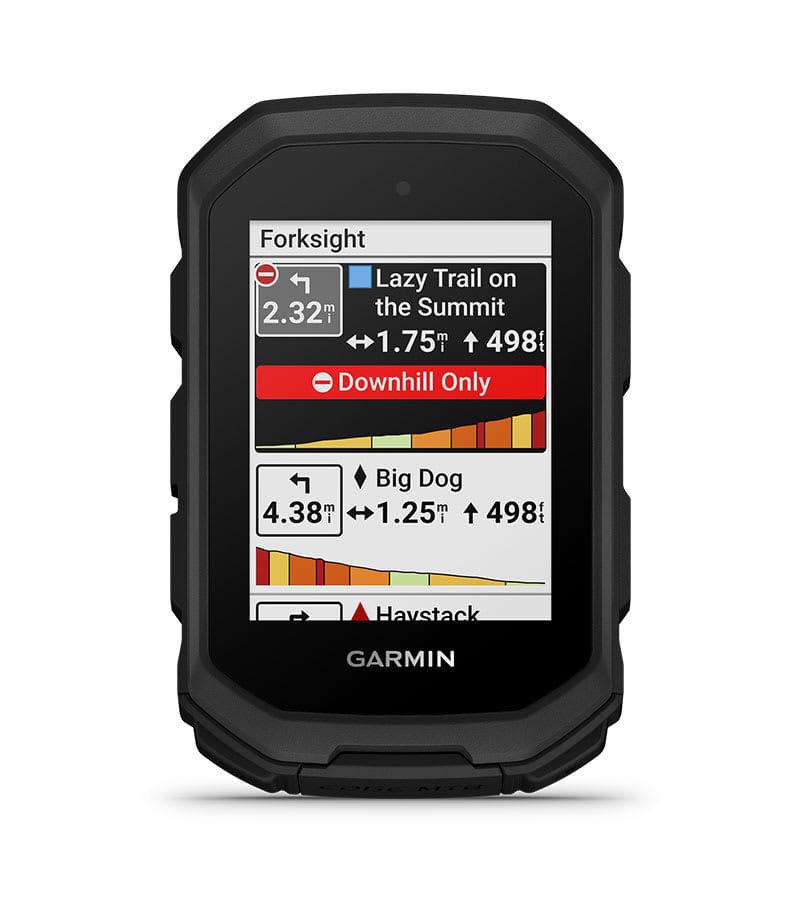

Unlock New Trail Data

With preloaded Trailforks maps, you can dig into trail details before you ride. And get guidance along the way with Forksight mode to see the names of trails up ahead, distance, elevation and more.

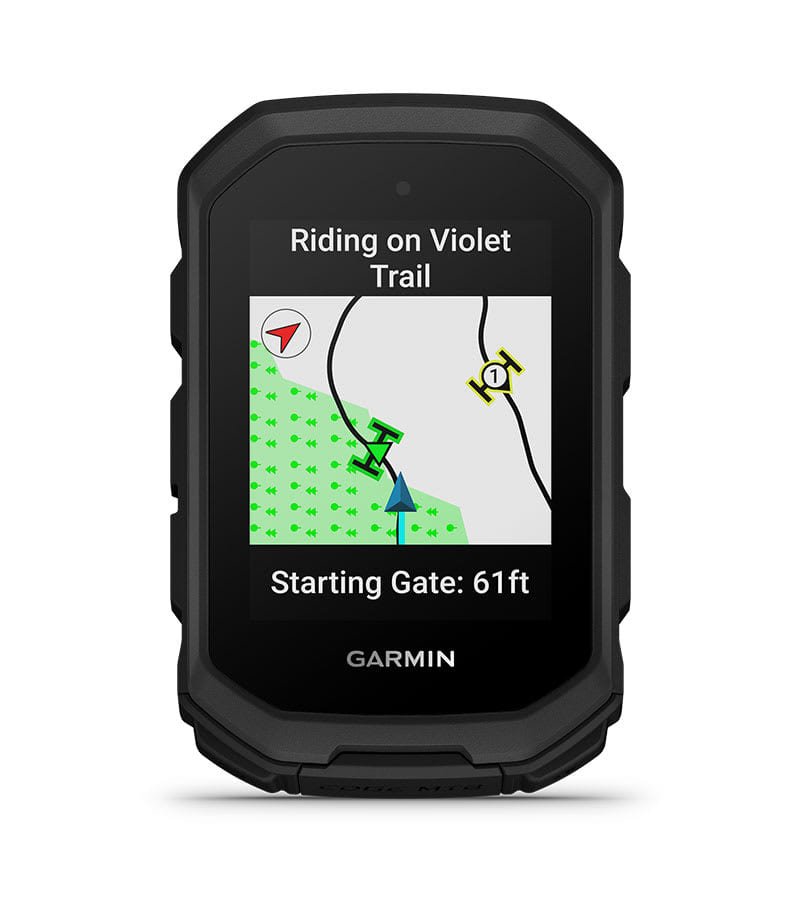

Set Timing Gates

Set timing gates throughout a course to track split times and better understand your ride or race performance in real time.

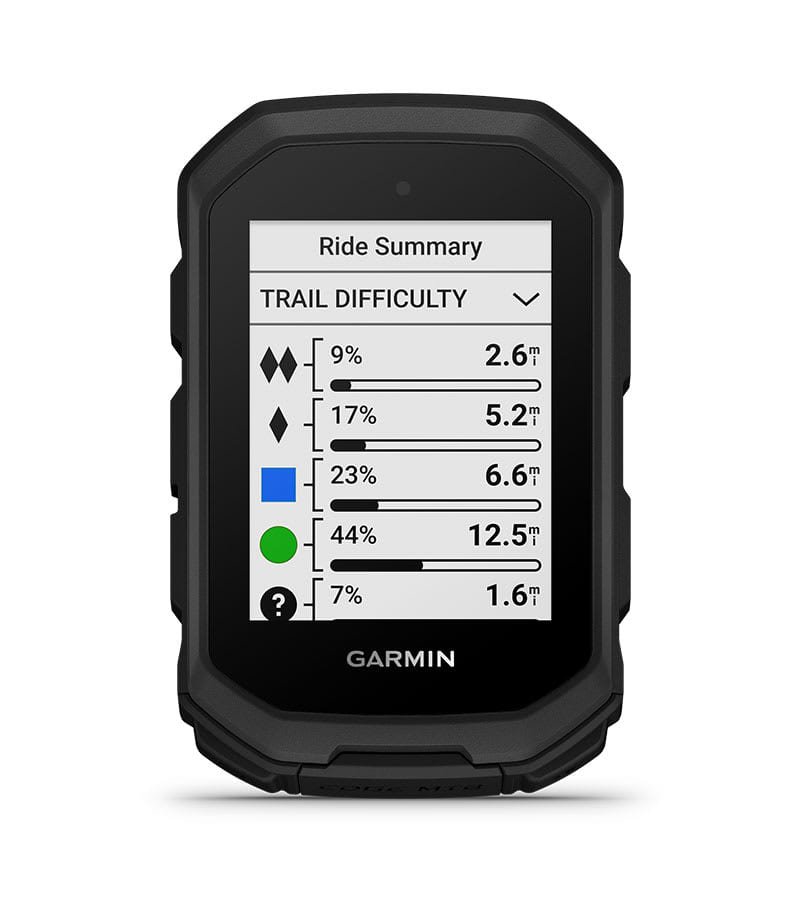

Rip All Day Long

Edge MTB is built with long riding days in mind, with up to 14 hours of battery life in demanding use cases or up to 26 hours in battery saver mode.

Rugged on the Outside. Intelligent on the Inside.

Prepare

Maps for Every Ride

Ride with preloaded maps for paved and unpaved pathways, streets and more. Plus, get worldwide MTB trail data from Trailforks.

Ride-Specific Routing

Get routing suited to your ride, whether you’re on mountain, gravel or road.

VO2 Max

Recovery Time

Garmin Coach

Groupride

Daily Suggested Workouts

On-Device Gear Tracking

Train and Perform

Climbpro Feature

Cycling Dynamics

MTB Dynamics

Turn-by-Turn Directions

Stay on track with turn-by-turn directions and alerts.

Back to Start

Get back on track — or back to start — if you’re lost or want to go home early.

Nutrition and Hydration Alerts

Stay fueled on a ride with notifications when it’s time to hydrate or eat.

Safety and Awareness

Road Hazard Alerts

Incident Detection

Bike Alarm

A PIN-protected alarm notifies you via your compatible smartphone if your bike is moved.

Connectivity

Smart Notifications

Receive texts and alerts on your Edge bike computer when paired with your smartphone.

Smart Trainer Compatibility

Ebike Compatibility

Electronic Shifting Connectivity

Configure select shifting systems to control your Edge device and view battery life, swipe through data pages, and more.

Specifications

General

Dimension	50.4 x 77.8 x 19.8 mm
Weight	58 g
Water rating	IPX7
Display Type	Transflective TFT
Display Size	2.13 (54.1 mm) diagonal
Display resolution	240 x 320 pixels
Color display	Yes
Battery Type	rechargeable lithium-ion
Battery life	Up to 14 hours (demanding use); Up to 26 hours battery saver mode; See Details
Battery save mode	Yes

Maps & Memory

Ability to add maps	Yes
Basemap	Yes
Integrated TrailForks trail data	yes (includes enhanced ForkSight mode)
External memory storage	32 GB internal memory
Waypoints/favorites/locations	200
Navigation Routes	100 courses
History	Up to 200 hours

Sensors

GPS	Yes
GLONASS	Yes
Galileo	Yes
Barometric altimeter	Yes
Gyroscope	Yes
Accelerometer	Yes
Ambient light sensor	Yes
5 Hz GPS	Yes
Multi-band GNSS	Yes
Magnetometer	Yes

Daily Smart Features

Connectivity	Bluetooth®, ANT+®
Connect IQ™ (downloadable watch faces, data fields and apps)	Yes
On-device Connect IQ™ Store	Yes
Smart Notifications	Yes
Text response/reject phone call with text (Android™ only)	Yes
Weather forecasts	Yes
Realtime settings sync with Garmin Connect™ mobile	Yes
Controls smartphone music	Yes
VIRB® Remote	Yes
Smart trainer control	Yes
Smartphone compatibility	iPhone®, Android™
Garmin Share	Yes

Safety and Tracking Features

Assistance	Yes
LiveTrack	Yes
GroupTrack	Yes
Group Ride (cycling)	Yes
GroupRide competitions and awards	Yes
Rider-to-rider messaging	Yes
Incident detection	yes (includes off-road)
GroupRide incident detection	Yes
Community generated hazards reporting	Yes
Find My Edge®	Yes
Bike alarm	Yes
Weather alerts	Yes
inReach® compatible	Yes

Activity Tracking Features

Calories burned	Yes
Intensity minutes	Yes

Training, Planning and Analysis Features

Customizable data pages	Yes
Downloadable training plans	Yes
Daily workout suggestions	Yes
Primary and secondary workout targets	Yes
Auto Pause® automatic timer halt	Yes
Interval training	Yes
Advanced workouts	Yes
Auto Lap® interval tracking feature	Yes
VO2 Max	Yes
Training load – Cycling	Yes
Recovery advisor	Yes
Virtual Partner	Yes
Race an Activity	Yes
Segments	Yes
Auto scroll	Yes
Physio TrueUp	Yes

Outdoor Recreation

ClimbPro™ Ascent Planner – Courses	Yes
ClimbPro™ Ascent Planner – Free riding	Yes

Cycling Features

Courses	Yes
Alerts (triggers alarm when you reach goals including time, distance, heart rate or calories)	Yes
FTP (Functional Threshold Power)	Yes
MTB Dynamics	Yes
Gravity MTB ride profile support (Downhill, Enduro, e-Enduro)	Yes
Timing gates	Yes
Compatible with Varia™ radar (rear-facing radar)	Yes
Compatible with Varia™ radar camera	Yes
Compatible with Varia™ lights	Yes
Power meter compatible	Yes
TopoActive maps – Cycling	Yes
Trendline Popularity Routing – Cycling	Yes
Popularity heatmap	Yes
Cycling Dynamics compatible	Yes

Connectivity

Edge® remote	Yes
Varia™ remote	Yes
ANT+™ electronic shifting	Yes
Shimano Di2 Synchro Shift integration	Yes
SRAM AXS integration	Yes
Extended display (allows a Garmin watch to share data screens on Edge®)	Yes

In the Box

• Edge MTB cycling computer
• MTB mount
• Top tube mount with strap
• Tether
• Charging/data cable
• Documentation
